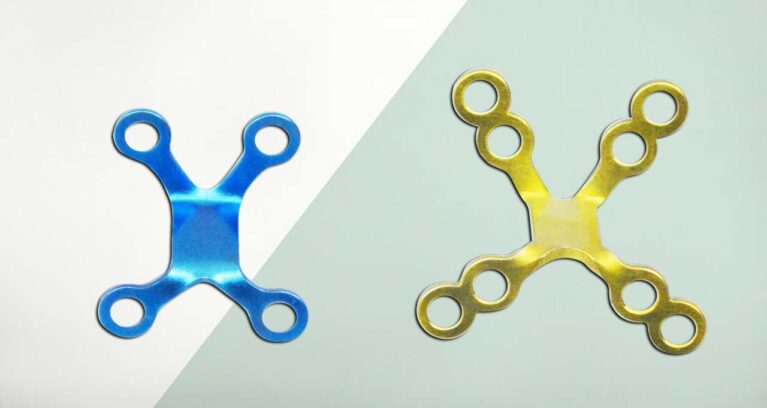

Chin plates, also known as mandibular symphysis plates, are titanium or biocompatible metal implants designed to stabilize and support the bony fragments of the anterior mandible (chin area) during healing. These plates are part of CMF fixation systems used in trauma, tumor reconstruction, or orthognathic (jaw-corrective) surgery.

Key Features: Chin Plates (Mandibular Symphysis Plates)

Here are the key features of Chin Plates in Cranio-Maxillofacial (CMF) Surgery, explained in detail.

Anatomical Contour Design

  • Chin plates are pre-contoured to match the natural curvature of the anterior mandible (chin area), improving fit and minimizing the need for intraoperative bending.
  • This promotes better stability and comfort, and reduces soft tissue irritation.

Material Composition

  • Typically made from biocompatible titanium (Grade 5 or Grade 2), which is lightweight, strong, corrosion-resistant, and MRI-safe.
  • Some are available in resorbable polymers (like PLLA or PLGA) for pediatric or special-use cases where future plate removal is desired.

Low Profile

  • Designed to be thin and low in profile to minimize palpability through the skin or oral mucosa.
  • Reduces risk of postoperative discomfort, soft tissue irritation, or exposure.

Multiple Hole Configurations

  • Available in various hole counts and patterns (e.g., 2-hole, 4-hole, 6-hole, or more), allowing for versatile screw placement and fixation strength.
  • Some plates are slotted or have combination holes for different screw types.

Locking and Non-locking Options

  • Locking plates allow screw heads to lock into the plate, forming a fixed-angle construct for stronger fixation, especially in osteoporotic or comminuted fractures.
  • Non-locking plates rely on friction between bone and screw, and are used in simpler cases.

Screw Compatibility

  • Compatible with 2.0 mm or 2.4 mm cortical or locking screws.
  • Some plates support variable-angle locking screws, allowing surgeons to insert screws at customized angles to avoid roots or nerves.

Customizable and Modular

  • Some systems offer modular chin plates that can be cut or extended intraoperatively.
  • Others may have modular segments for combining with midline or lateral segments as needed.

Radiolucency or Radiopacity

  • Titanium is radiopaque (visible on X-rays), helping confirm proper placement.
  • Bioresorbable plates, when used, are radiolucent but may have markers for identification.

Sterile and Ready-to-Use

  • Most chin plates come pre-sterilized and packaged, ready for immediate use in the operating room.

Common Functions of Chin Plates in CMF Surgery

Fixation of Symphysis and Parasymphysis Fractures

  • Primary role of chin plates is to stabilize fractures of the anterior mandible (the central and side regions of the chin).
  • These fractures can result from:
  • Road traffic accidents
  • Physical assaults
  • Sports injuries
  • Falls
  • Plates hold the fractured bony fragments in alignment during healing and enable early function (chewing, speaking).

Support in Orthognathic Surgery (Genioplasty)

  • In sliding genioplasty, the chin bone is surgically repositioned to correct jaw deformities or cosmetic issues (e.g., receding or protruding chin).
  • Chin plates secure the repositioned bone segment, maintaining the desired shape and projection until healing completes.

Mandibular Reconstruction

  • Used in reconstructive procedures where part of the chin is removed due to:
  • Tumor resection
  • Trauma with bone loss
  • Congenital defects
  • Chin plates bridge the bony gap and may help secure bone grafts or flaps, ensuring rigid stabilization.

Facial Asymmetry Correction

  • Plates are used when correcting asymmetry of the chin or lower jaw, often as part of facial feminization/masculinization surgery or corrective jaw surgery.
  • By holding the repositioned segments in place, they help achieve balanced facial aesthetics.

Anchorage for Bone Grafting

  • When performing bone grafts to augment the chin or jaw, chin plates provide a stable scaffold to:
  • Fix the graft in place
  • Prevent displacement
  • Encourage bone integration

Stabilization in Edentulous Patients

  • In edentulous (toothless) patients, reduced bone mass and poor oral conditions may weaken natural fracture healing.
  • Chin plates provide rigid fixation where dentures or standard screw placement might be inadequate.

Immediate Load Bearing

  • Their rigid design allows for early mobilization and function, such as chewing soft food, thus improving patient comfort and recovery.

Surgical Benefits of Chin Plates

Rigid and Stable Fixation

  • Chin plates provide strong mechanical support, allowing for stable immobilization of the fractured or repositioned bone segments.
  • This is especially crucial in mobile areas like the mandible, which is subjected to constant motion from talking and chewing.

Early Functional Recovery

  • Due to their rigid fixation, chin plates enable early return to normal functions:
  • Chewing
  • Speaking
  • Facial expressions
  • This promotes faster recovery and reduces the need for prolonged immobilization or jaw wiring.

Minimized Risk of Malunion or Nonunion

  • Accurate alignment and rigid fixation of bony fragments reduce the chances of malunion (improper healing) and nonunion (failure to heal).
  • This ensures correct anatomical restoration of the jaw.

Preservation of Facial Aesthetics

  • In both trauma and elective surgeries (e.g., genioplasty), chin plates help restore or enhance facial contours.
  • Precise stabilization of the bone segments helps maintain symmetry, projection, and harmony of the chin region.

Low Profile & Soft Tissue Compatibility

  • Most chin plates are low-profile and anatomically contoured, which:
  • Minimizes plate palpability
  • Reduces soft tissue irritation
  • Lowers the risk of mucosal or skin erosion, especially in thin patients

Versatility Across Procedures

  • Chin plates are useful in a variety of surgical contexts:
  • Trauma repair
  • Tumor resection and reconstruction
  • Cosmetic genioplasty
  • Congenital deformity correction
  • Surgeons can use the same basic principles and systems for diverse needs.

Reduced Need for Prolonged Jaw Immobilization

  • Unlike older techniques requiring intermaxillary fixation (jaw wiring) for weeks, chin plates minimize or eliminate this requirement.
  • This significantly improves patient comfort and nutrition during recovery.

Custom Fit and Adaptability

  • Chin plates are often pre-contoured or easily bendable to suit patient anatomy, offering customized fit for individual cases.
  • This adaptability reduces intraoperative time and enhances surgical precision.

Radiographic Visibility for Monitoring

  • Titanium chin plates are radiopaque, allowing surgeons to monitor healing on X-rays, and confirm the plate’s position postoperatively.

Compatible with Bone Grafting and Soft Tissue Flaps

  • They provide secure fixation for bone grafts or vascularized flaps used in reconstruction.
  • This is critical in oncologic or complex facial trauma cases requiring multi-tissue repair.

Common Surgical Applications of Chin Plates

Chin plates, also known as mandibular symphysis/parasymphysis plates, are widely used in both trauma-related and elective surgeries. They play a crucial role in managing fractures, correcting deformities, and supporting reconstructive procedures involving the anterior mandible (chin area).

Symphysis and Parasymphysis Fracture Fixation

  • Most common indication for chin plates.
  • These fractures affect the central (symphysis) and side (parasymphysis) regions of the lower jaw.
  • Chin plates provide rigid stabilization, especially in cases involving:
  • Comminuted fractures
  • Displaced or unstable fractures
  • Fractures with tooth involvement or infection risks
  • Often used in combination with monocortical screws and intermaxillary fixation for optimal stability.

Sliding Genioplasty (Cosmetic or Functional Chin Surgery)

  • Chin plates are essential in orthognathic procedures such as advancement, setback, vertical lengthening, or rotation genioplasty.
  • Used to secure the repositioned bony segment of the chin after osteotomy.
  • Helps maintain facial balance, harmony, and function, especially in patients with:
  • Microgenia (receding chin)
  • Macrogenia (protruding chin)
  • Asymmetrical chin contours

Mandibular Reconstruction Post-Tumor Resection

  • Chin plates are used when part of the mandible is resected due to:
  • Benign or malignant tumors
  • Cystic lesions
  • The plates help fix bone grafts or alloplastic implants and reconstruct the continuity of the jaw.
  • May be used along with free fibula flaps or iliac crest grafts.

Correction of Congenital or Developmental Deformities

  • Used in the treatment of conditions like:
  • Pierre Robin sequence
  • Hemifacial microsomia
  • Mandibular hypoplasia
  • Chin plates stabilize repositioned or grafted bone segments, aiding long-term correction and symmetry.

Post-Traumatic Deformity Correction

  • In cases of improperly healed or malunited mandibular fractures, chin plates can be used to:
  • Refracture and realign the chin segment
  • Provide rigid fixation for corrective osteotomy
  • Restores jawline contour and bite alignment.

Edentulous Mandible Fixation

  • In elderly or edentulous patients (no teeth), bone quality may be poor.
  • Chin plates help in:
  • Stabilizing atrophic mandibular fractures
  • Supporting denture-based implants or prosthetics

Support of Bone Grafts or Distraction Devices

  • Chin plates can stabilize autogenous or alloplastic bone grafts during chin augmentation or heightening procedures.
  • Sometimes used in conjunction with mandibular distraction osteogenesis devices.

Facial Feminization or Masculinization Surgery

  • Used to reshape and contour the chin as part of gender-affirming surgeries.
  • Plates stabilize bone after contouring to create a more angular or rounded chin, depending on aesthetic goals.

Gunshot or High-Velocity Injury Repair

  • In cases of ballistic or blast injuries involving mandibular comminution, chin plates:
  • Help in segmental bone fixation
  • Support multi-layer reconstruction (bone, soft tissue, dental structures)
